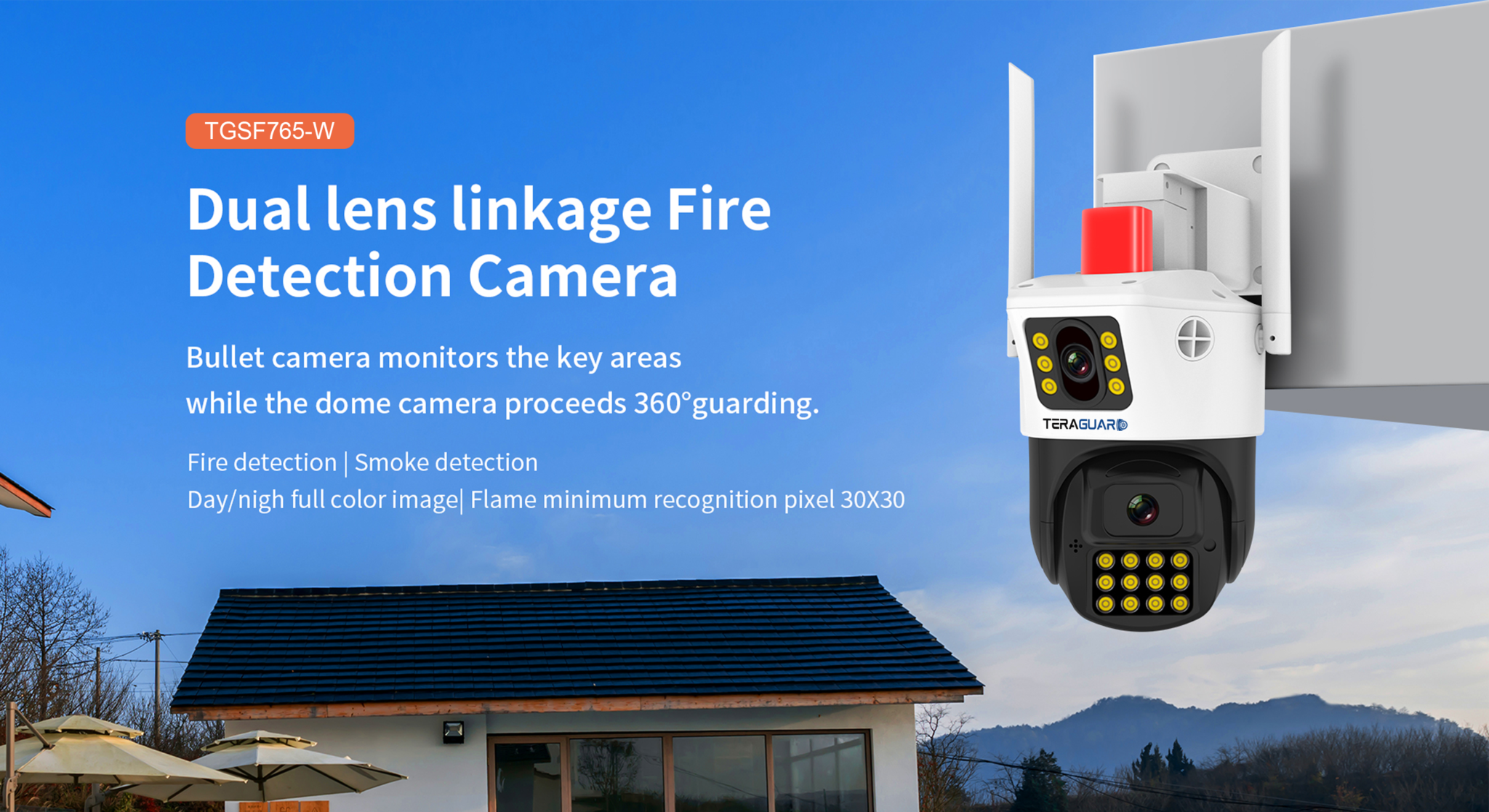

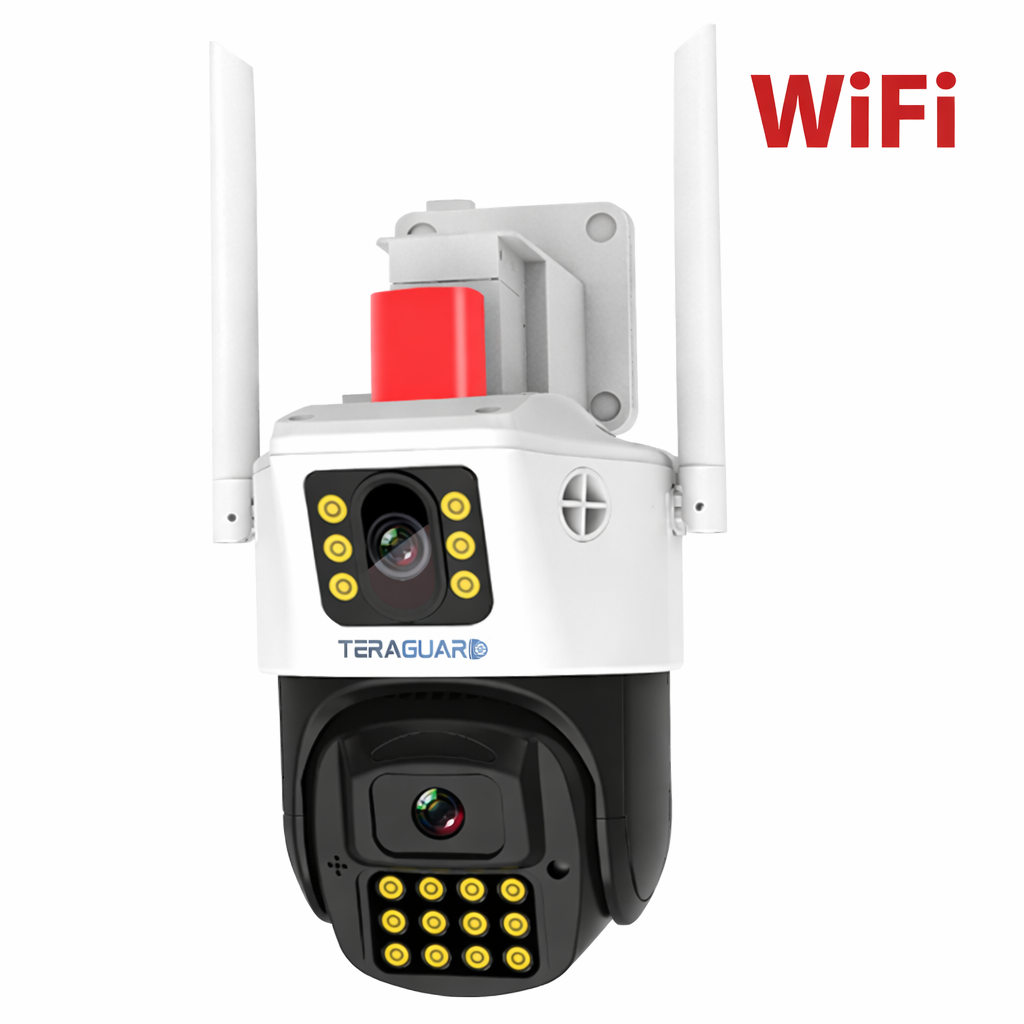

TGSF765-W

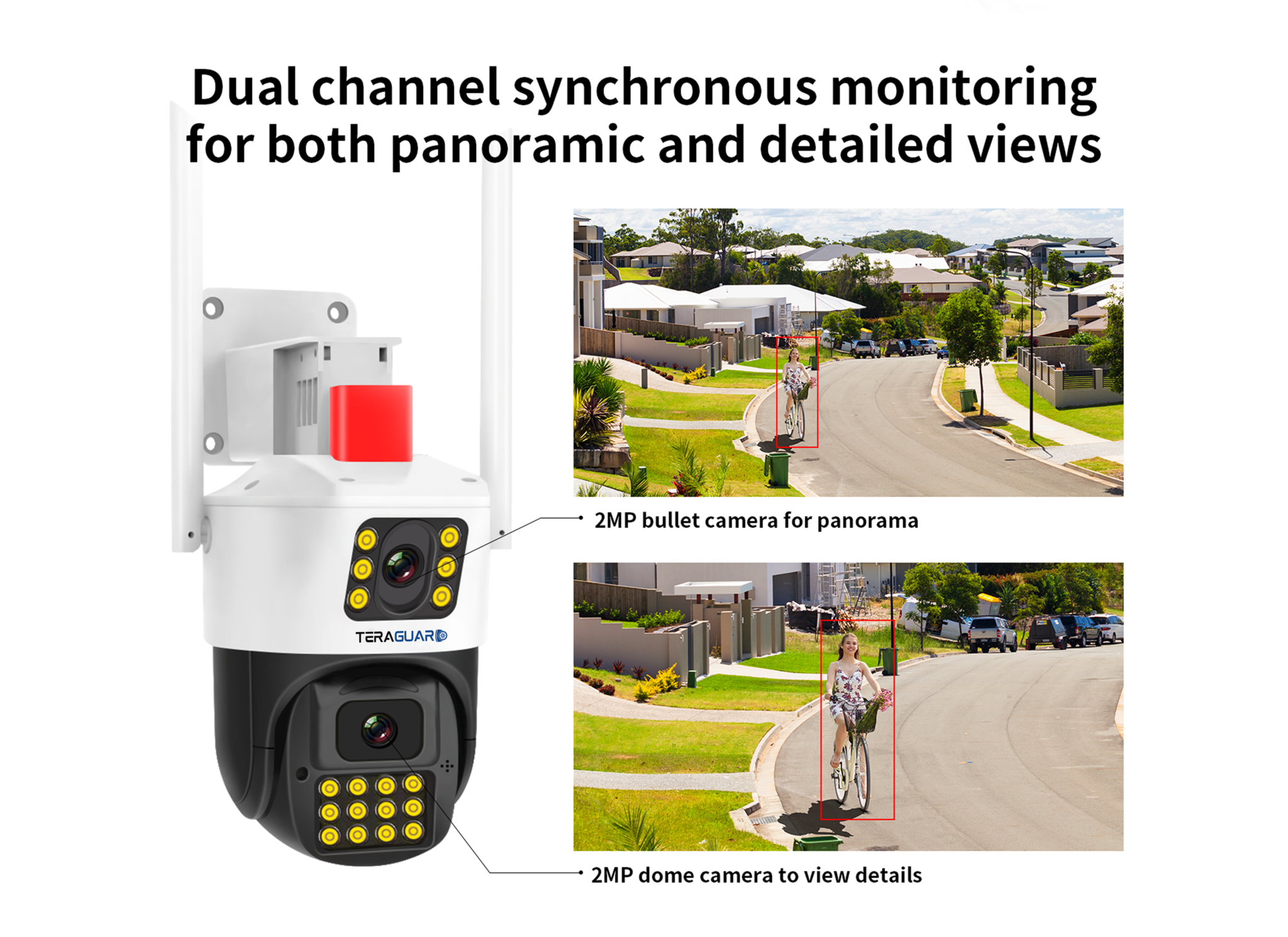

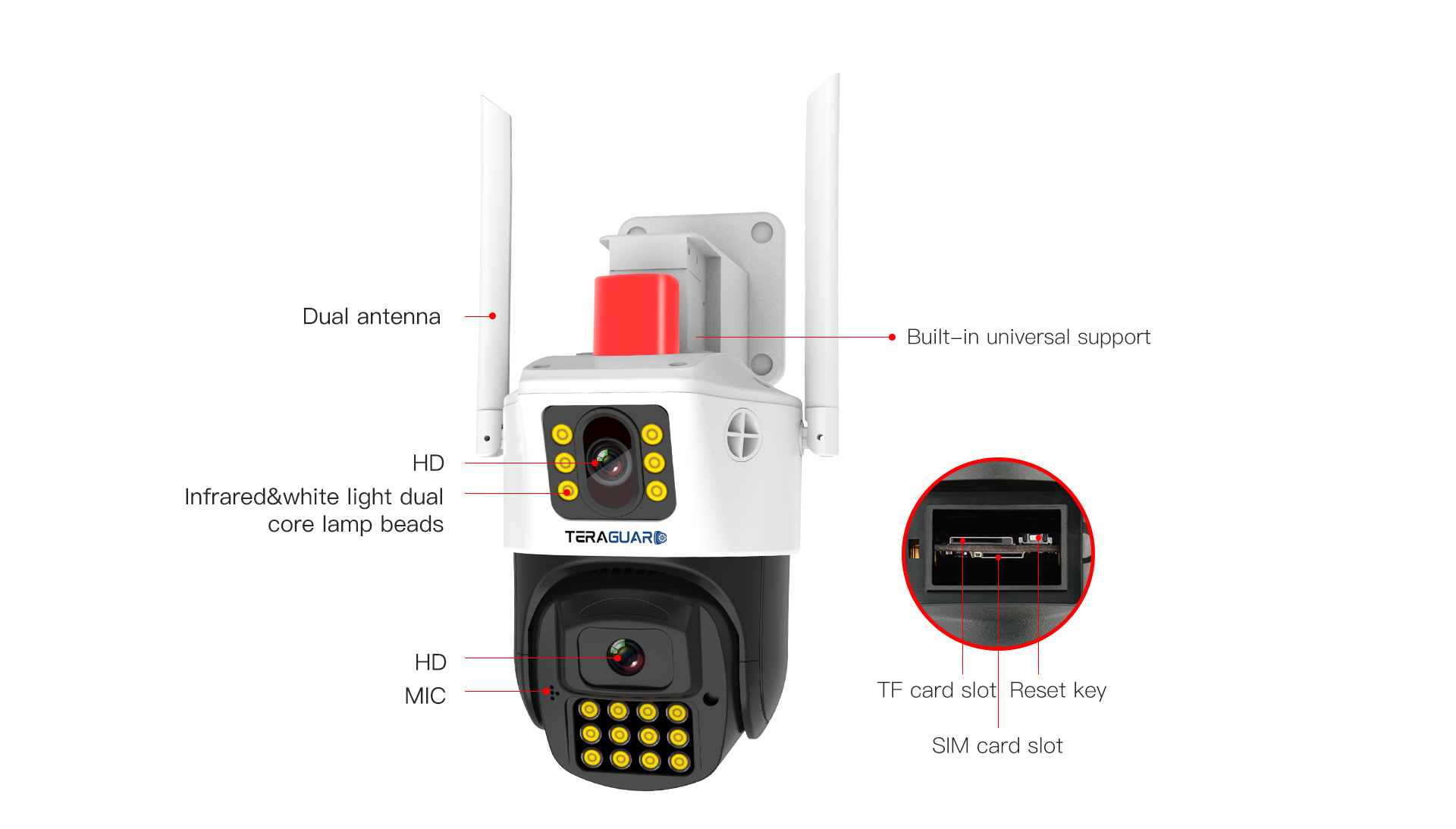

2MP Dual-View PTZ Camera – Equipped with a 1/3″ 1080p CMOS sensor, delivering Full HD 1920×1080@25fps. Features IR-CUT with dual-light night vision (15–30m), 350° pan / 90° tilt, and up to 16 preset positions. Built-in mic & 2W speaker enable two-way audio. Supports motion alarms plus advanced fire & smoke detection, with real-time alerts and voice/light warnings (90% detection accuracy). Works over WiFi (2.4GHz) or RJ45, with storage options via microSD (up to 256GB), cloud, NVR, or NAS. Reliable operation from -10°C to 50°C, low power consumption (max 11W).
THIS CAMERA ONLY SUPPORTS WIFI CONNECTION
Original price was: 102,37 €.76,77 €Current price is: 76,77 €.
Fast Shipping
Carrier information
Quality products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track your orders
Description
Specifications
| Sorts | Type | Parameters |
| Collection | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| CPU/Image sensor | Ingenic T40，2 MP Dual view，1/3 inch 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Lens | 4mm-6mm | |
| Night Vision | IR-CUT with auto-switching, dual light source, irradiation distance 15-30 meters | |
| Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG | |
| Data rate | Mainstream：1080p(1920*1080)@25fps， Substream：360p(640×360)@15fps | |
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Adjustable brightness and contrast | |
| Audio | Input | Built-in – 38dB microphone |
| Output | Built-in 8 Ω 2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/64kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4G | |
| Wireless | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| security encryption | ||

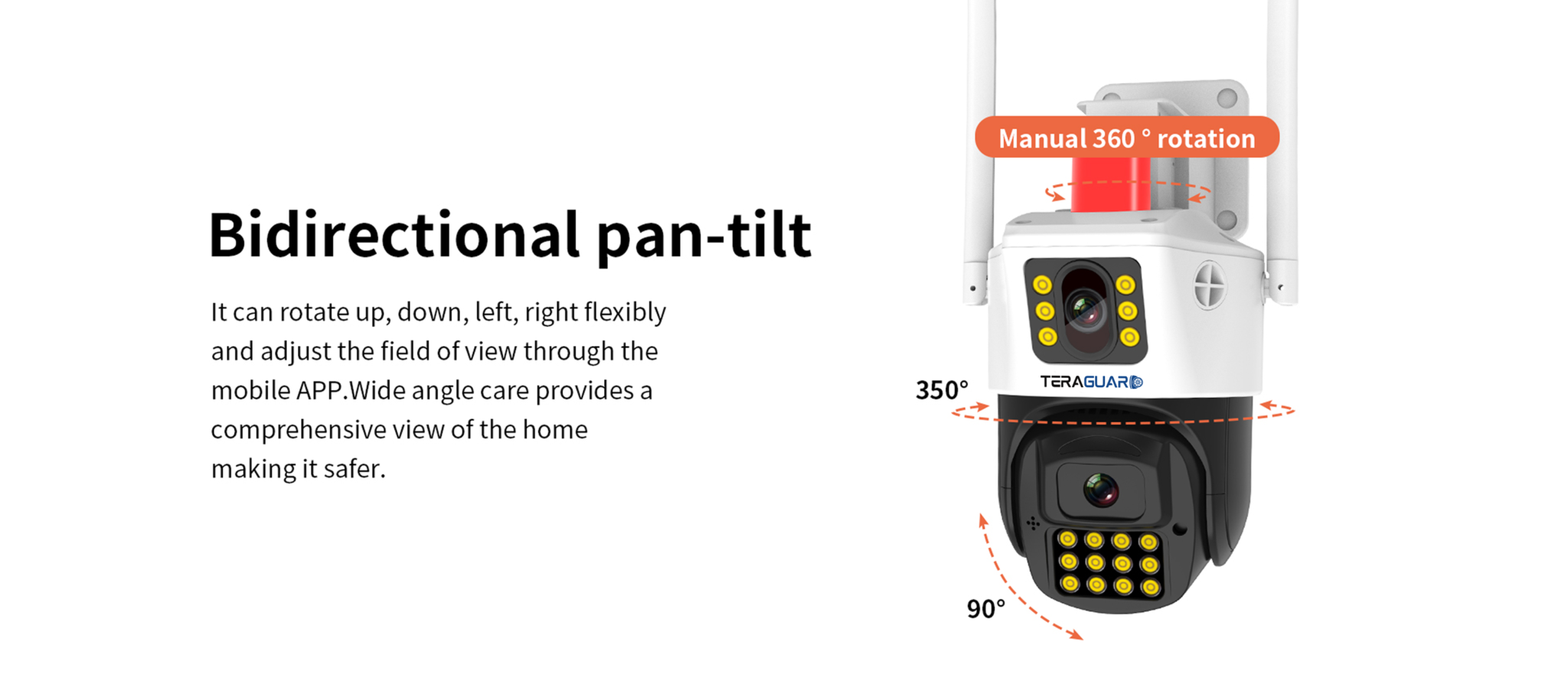

| Pan&Tilt | Rotation angle | Horizontal 350 °/Vertical 90 °, can be installed with 360 ° rotation |
| Preset position | Supports 16 presets (mobile app only supports 5) | |
| Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage; NVR；NAS |
| Alarm | Alarm detection | Support for fire point detection, and smoke&fire detection. |
| Smoke&fire detection | Flame&smoke detection and framing, directly locate the fire point; | |
| Minimum pixel of flame: 30X30 pixels, lasting for more than 3 seconds; | ||
| Recognizable flame colors: infrared, orange, yellow; | ||
| Recognized smoke colors: gray white, gray black; | ||

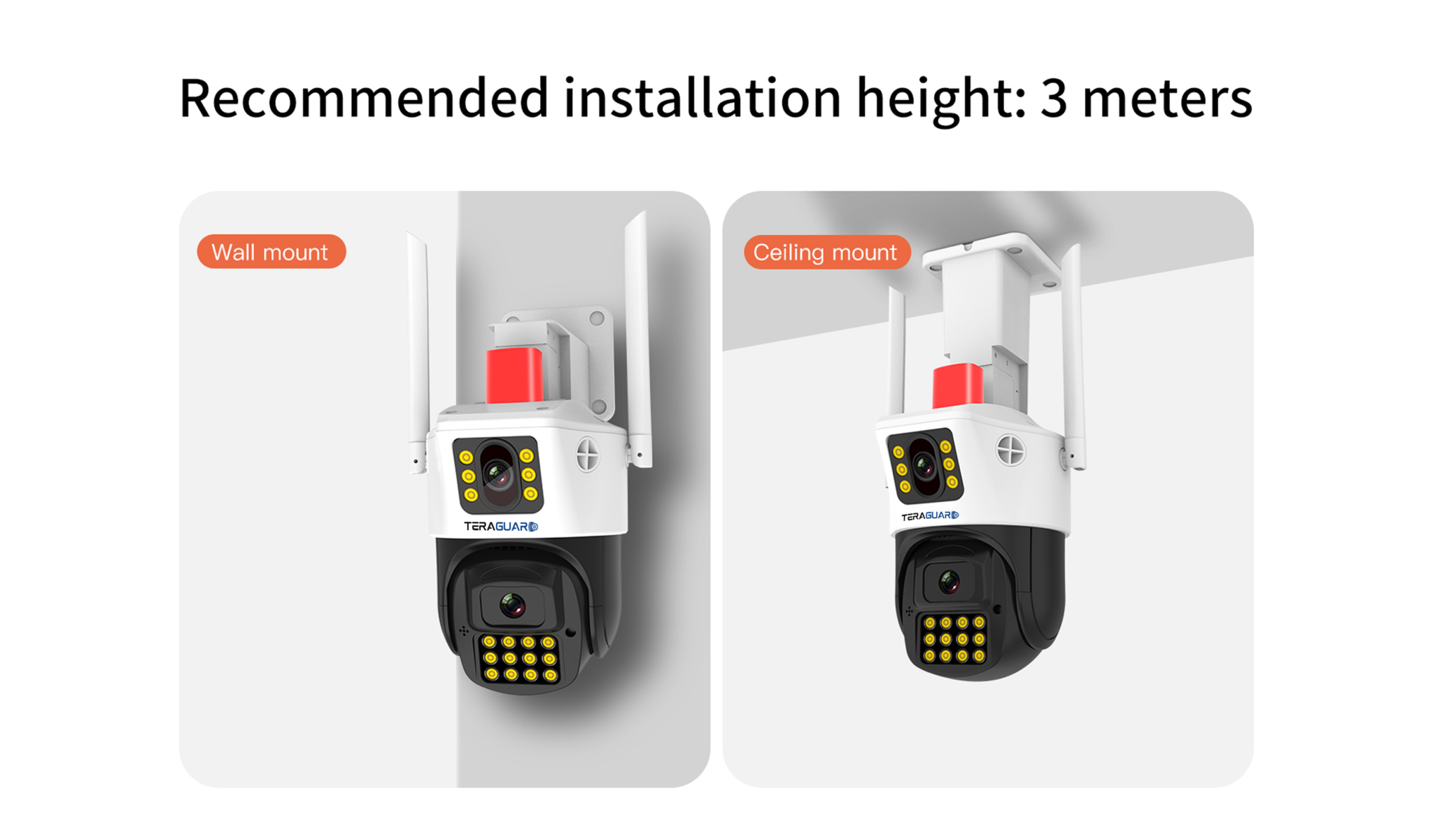

| Recommended installation height: 3 meters; | ||
| Detection rate: 90% | ||

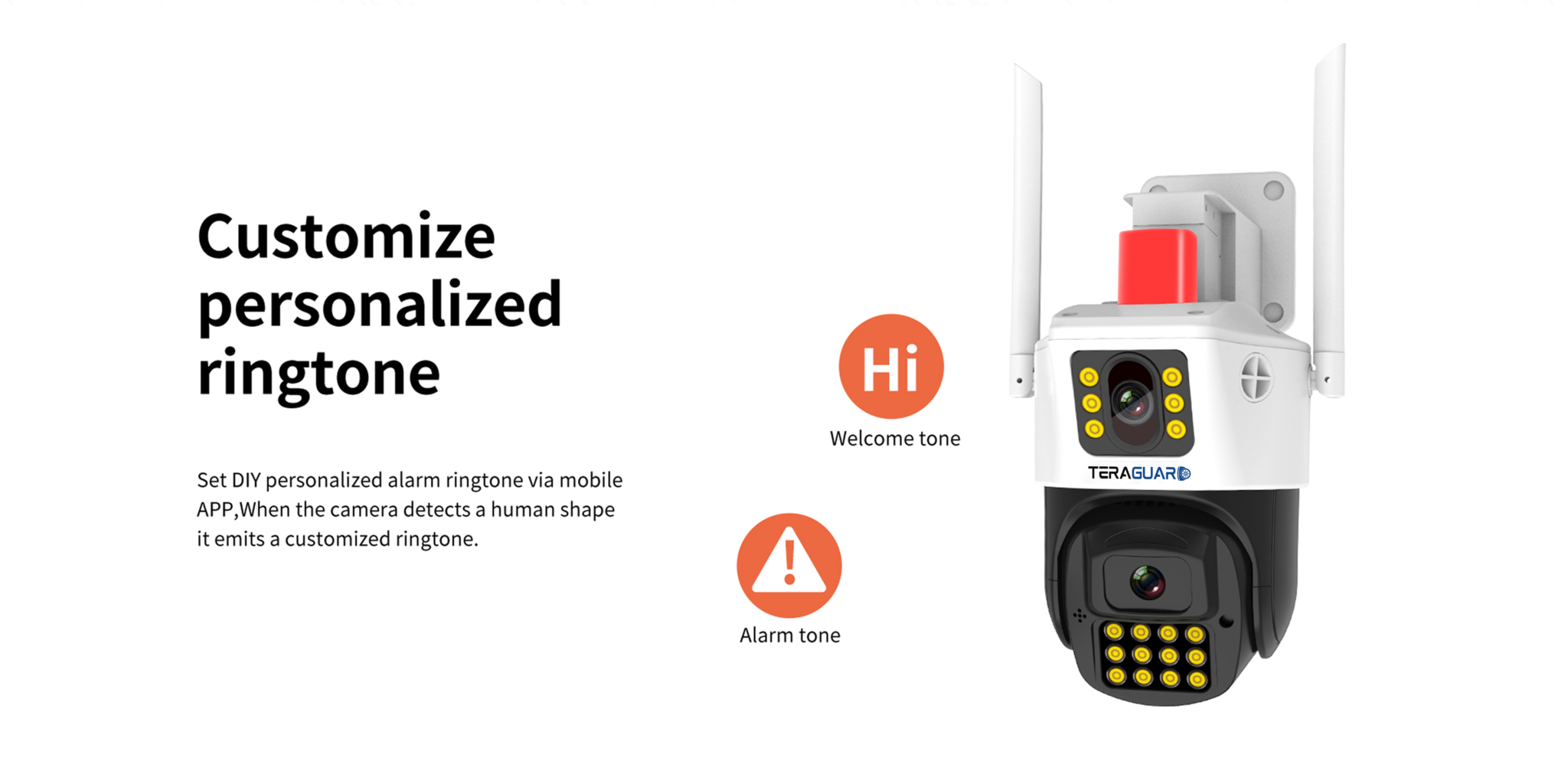

| Alarm mode | Alarm voice prompt and white light flashing or illuminating;Real time push of alarm messages; | |
| Physical indicators | Rated voltage | DC12V |
| Power consumption | Rated power: 4.5W (infrared light on)/maximum power: 11W (PTZ on) | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | Note: in kind prevail | |
| Package size | Note: in kind prevail |
